Summary
SmartCook server database application

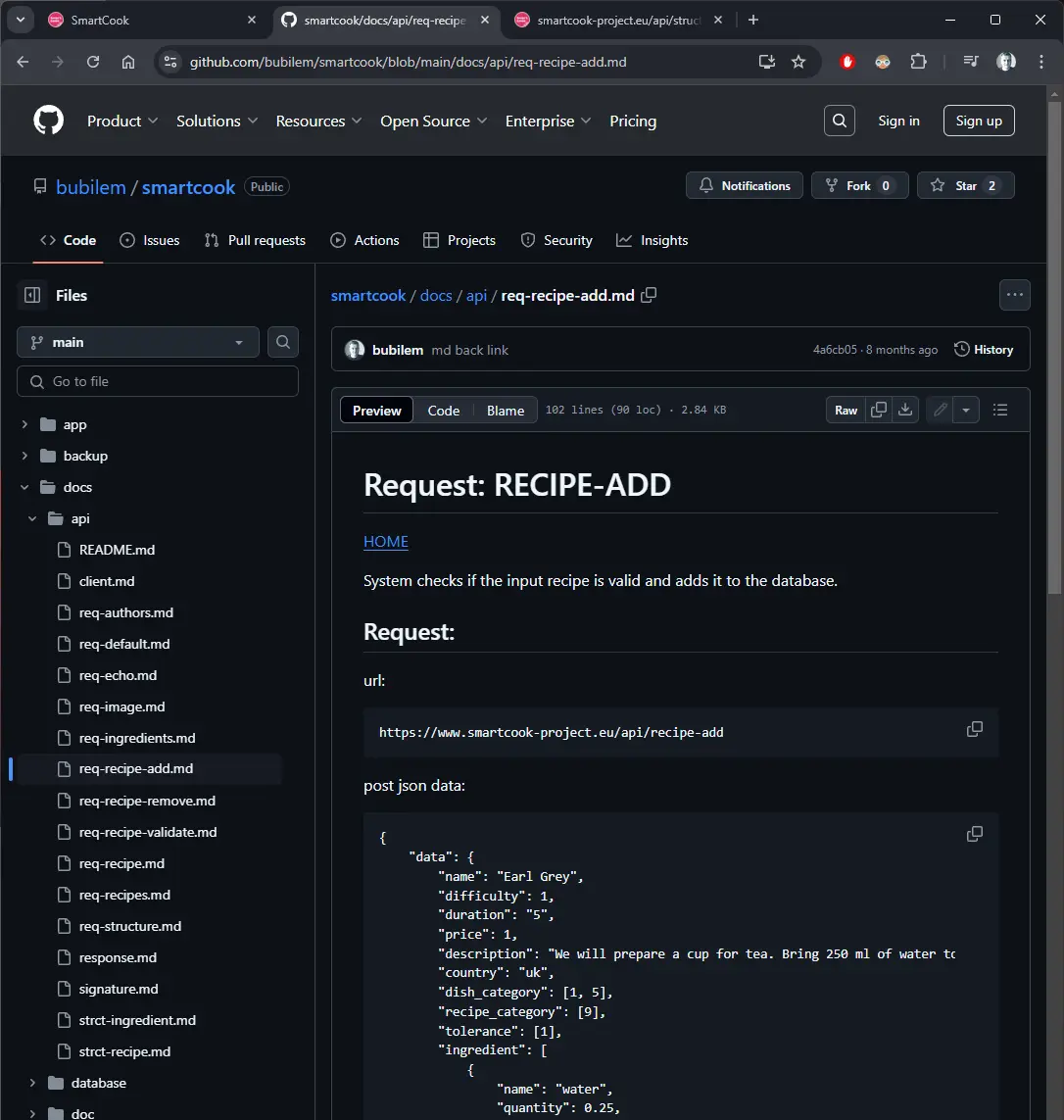

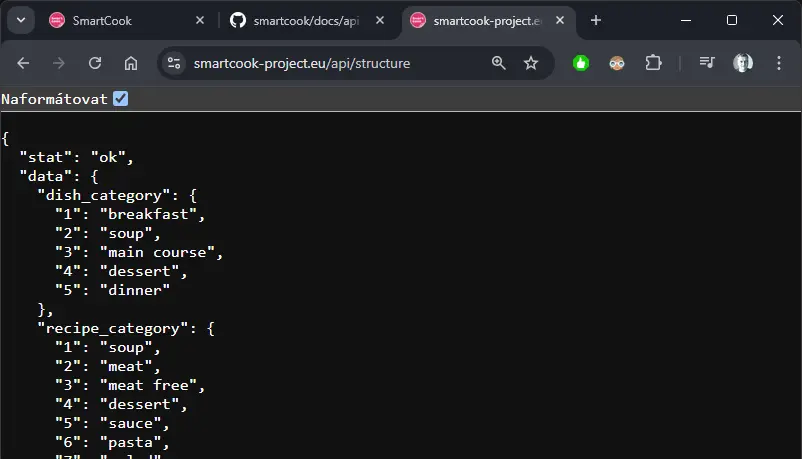

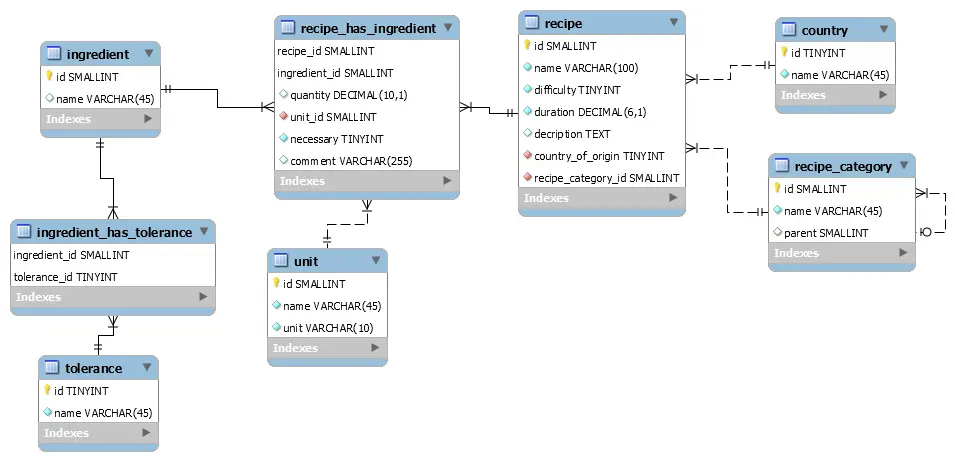

At the beginning of our work, we faced the design of the architecture of our SmartCook database system. We decided on a modern solution that offers a very wide and universal use, and that is to create a system like a REST API. First, we designed and created a relational database for recording all recipes, ingredients and their categorization. We programmatically used the SQL query language to communicate with DBMS MySQL. Next, we created a PHP application that served as a REST API. The core of the application and endpoints for structure, authors, recipes, ingredients and more have been created. We used OOP and separated controllers and data (models). To make it possible for other programmers to use the API, we have created complete documentation for it in the Markdown language directly on the public github service github. We also defined an error reporting system, standardized responses in JSON format and ensured the possibility to sign individual queries to the API using keys. Even the API itself used a public key to sign its responses. Only a registered user had access to important API queries, and the communication itself was signed not only for the purpose of authorization, but also for the purpose of verifying the correctness (originality of the message) of the communication. It was now possible for our database to be managed very simply (saving recipes, obtaining recipes according to filters, deleting recipes and much more) using http queries and responses and with the support of documentation. The API could now be used by other developers and create other different applications with it.

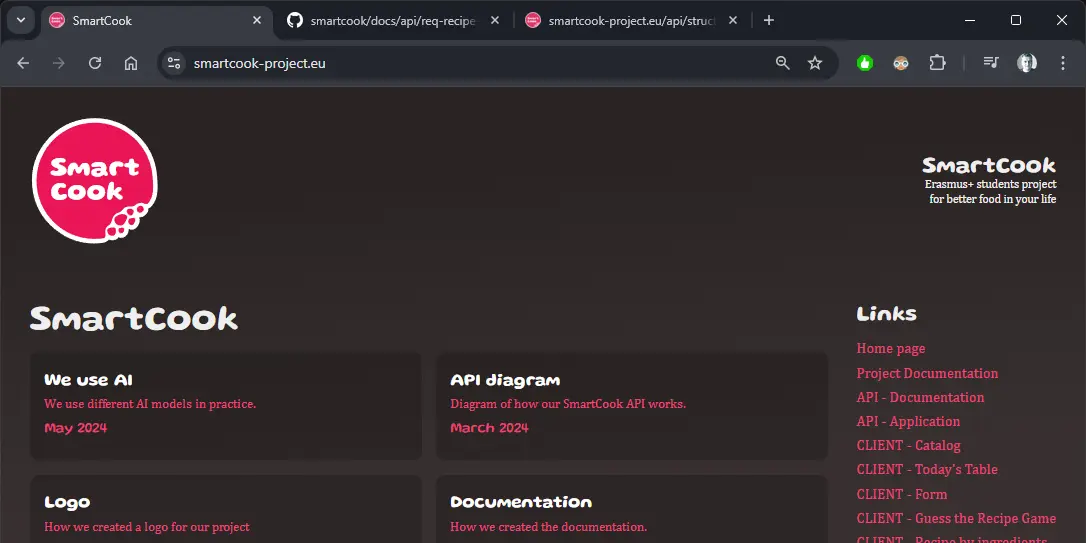

Web presentation
We also created a web presentation for this project, which has at least two main functions. The website introduces the results of the work and contains several interesting articles from our work and also contains all important links (the API itself, documentation, individual demo examples and others). It thus functions as the main signpost for the entire project and can be found at: https://www.smartcook-project.eu/.
Web applications
We wanted to somehow demonstrate our API itself and also manage the database of recipes and ingredients effectively. That's why we ended up creating five more different apps. All are optimized for display on larger displays and smaller mobile devices.

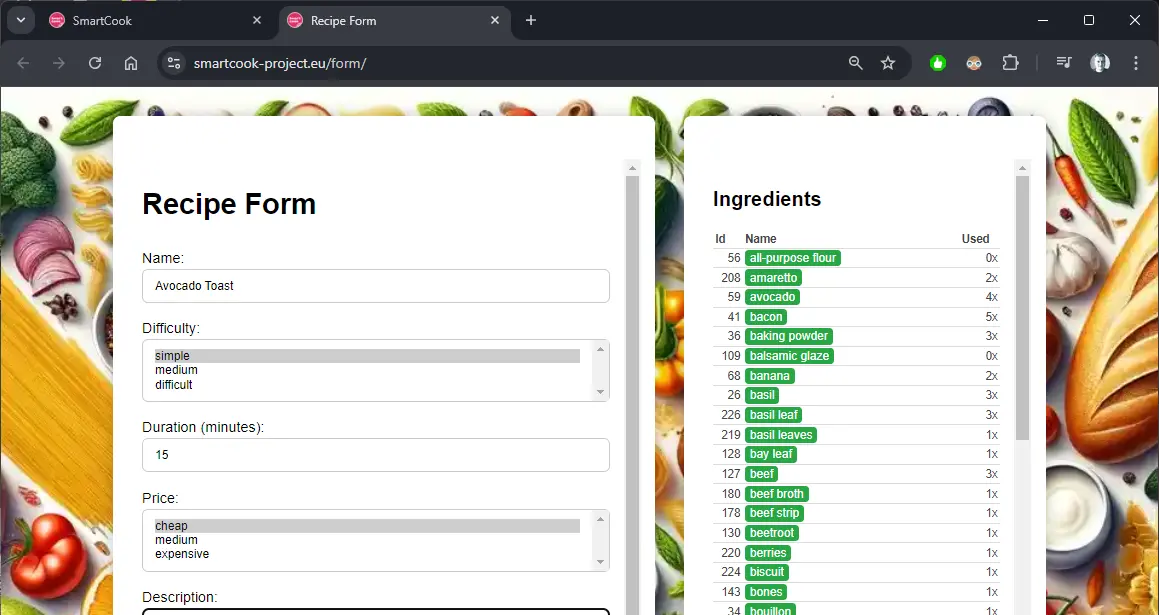

Form
Form is a web application for more efficient management of our recipe database. We have individual recipes and ingredients so they did not have to insert/edit/delete using http queries, but in the web browser in the form of a graphical user interface environment, created forms.

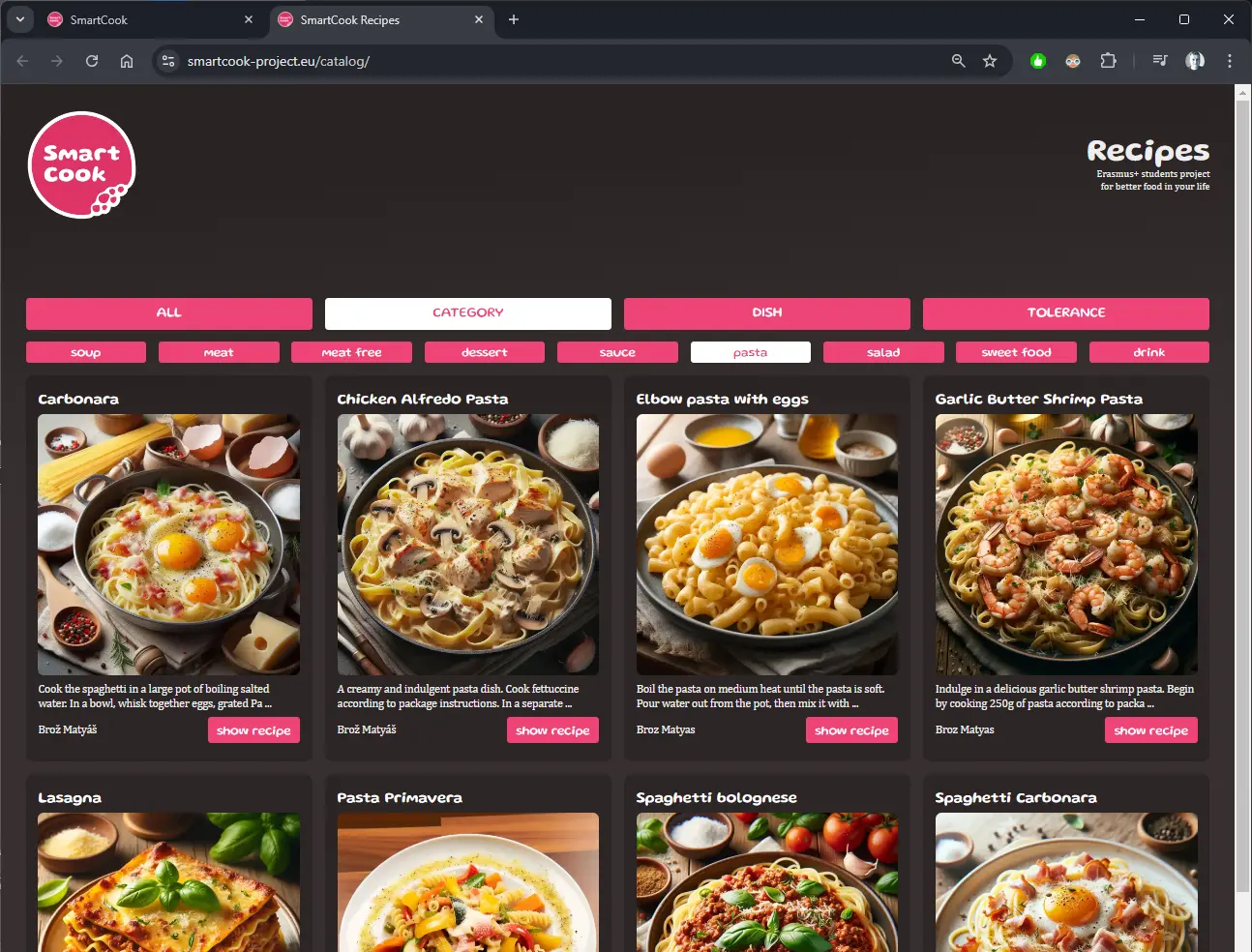

Catalog
The catalog allows us to display an overview of recipes with filtering, as well as a detail of each recipe on which we see it detailed description including ingredients.

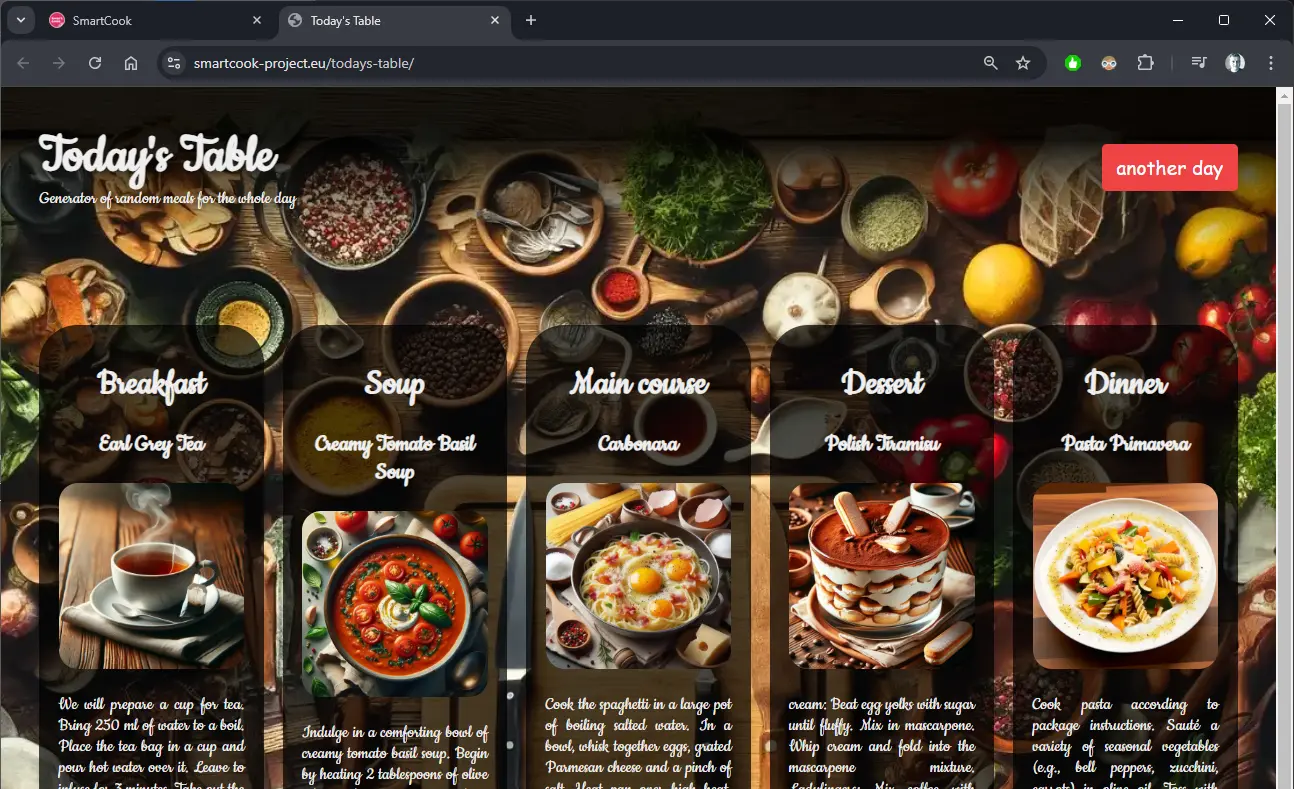

Today’s table
This is an app to inspire people on what to cook today. Thus, he compiles a random menu (breakfast, soup, main course, dessert and dinner) for one day.

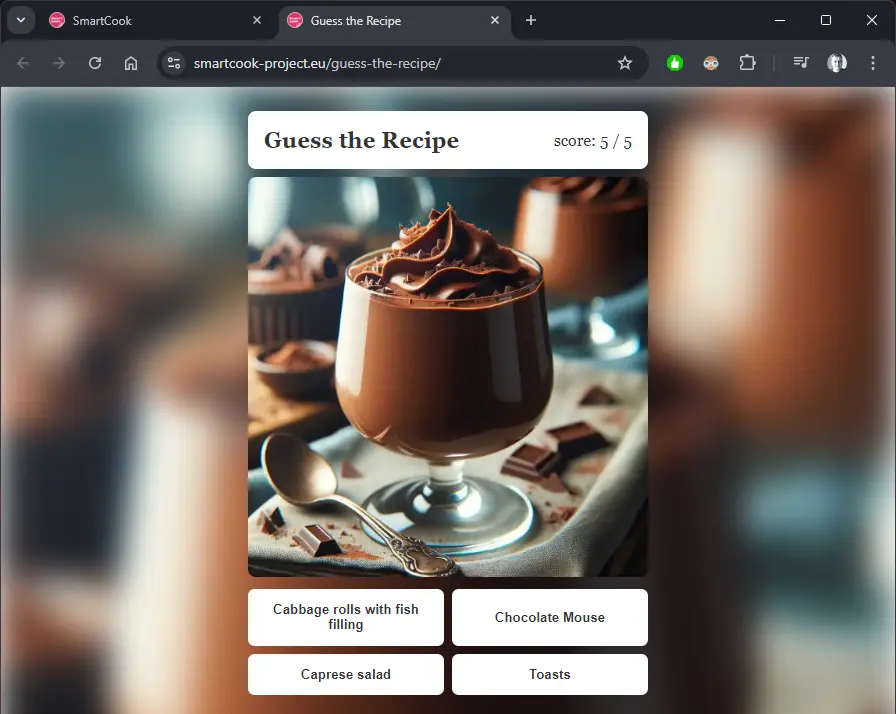

Guess the Recipe
This application is intended purely for simple entertainment. Recipes are generated here and the player guesses which recipe it is. In addition to entertainment, it can again serve as inspiration, for example, what sweet can we create today.

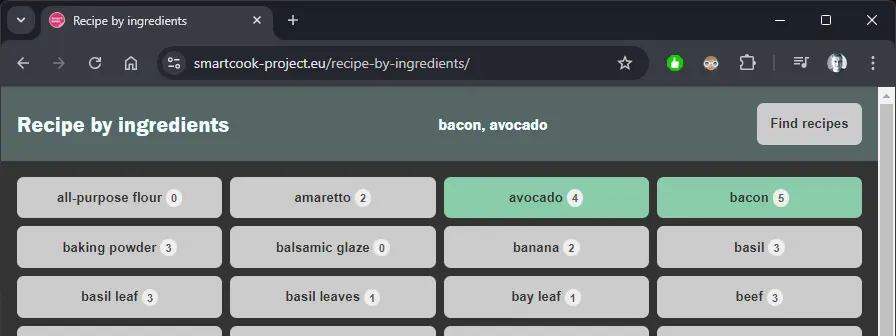

Recipe by ingredients
This application will show us an overview of the ingredients in its opening menu. The user can simply and quickly choose which ingredients are available at home, or what they feel like, and then use the "Find recipes" button to search for recipes containing these ingredients.
Another application
Since the system is built using a REST API, it is possible to create more and more applications. For example, an application simulating a refrigerator with recipe recommendations based on the current contents of the refrigerator, or an application for weekly meal planning, etc.
More work
During the actual creation of the software, we encountered other activities than just programming or database design. For example, cooking with Polish friends, designing and creating the logo of the project itself, as well as generating recipe images using artificial intelligence were very interesting for us.
