Database
How we created the database.

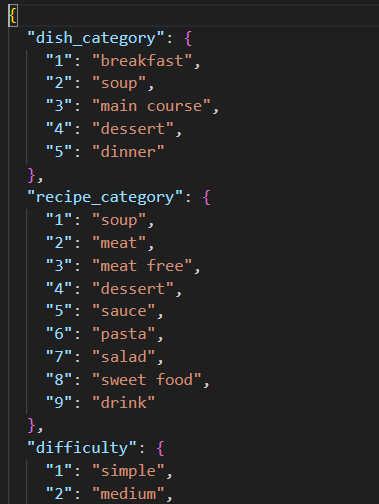

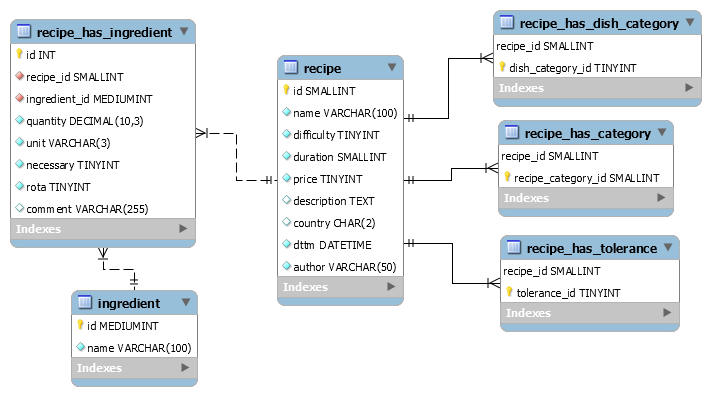

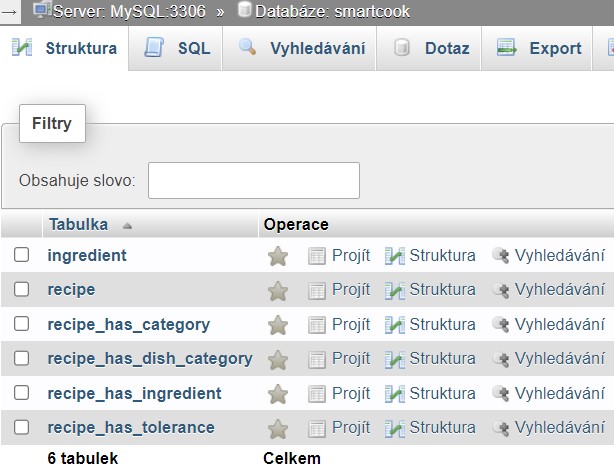

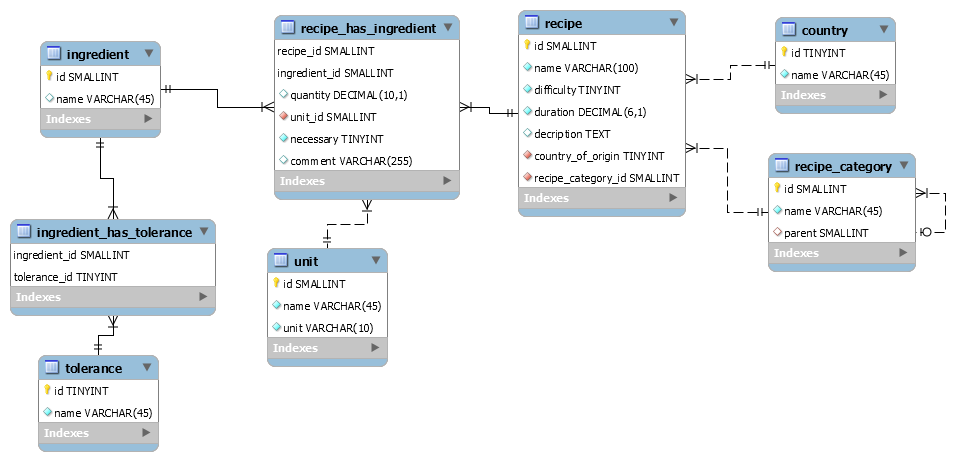

The SmartCook project's database design was a collaborative effort involving several brainstorming sessions with students. The team focused on creating an Entity-Relationship (E-R) schema that would effectively represent the data requirements of the project. After multiple iterations, a final design was achieved that met all the initial requirements. The database is relational and operates on a MySQL Database Management System (DBMS). In pursuit of optimization, certain static tables were replaced with data stored in JSON format, which allows for more flexibility and scalability. This approach not only streamlined the database structure but also enhanced the performance and maintainability of the system, ensuring that SmartCook's database is robust and efficient.
![database](pages/database/01.png)
![database](pages/database/02.jpg)
![database](pages/database/03.png)
![database](pages/database/04.png)
![database](pages/database/05.png)
